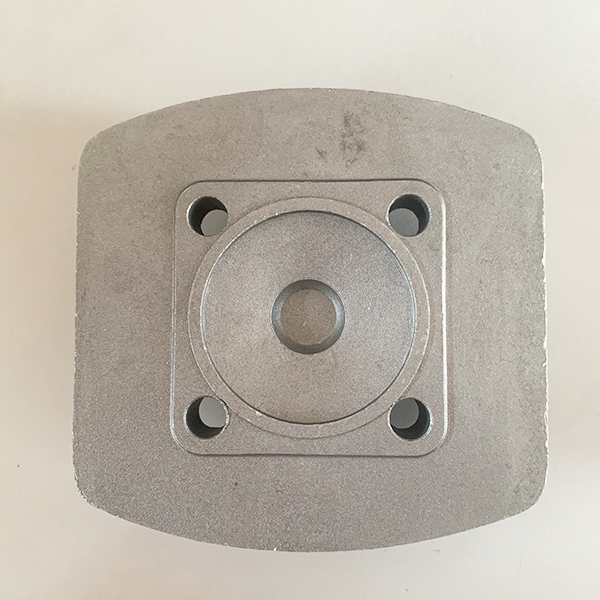

Motor Housing

Overview

Motor Housings are external protective structures that support and protect internal motor components, including rotors, stators, bearings, and electrical systems. These housings are commonly manufactured through aluminum die casting, aluminum casting, CNC machining, extrusion, and other precision manufacturing processes.

Motor housings are widely used in electric motors, industrial machinery, electric vehicles, pumps, fans, automation equipment, and power systems. Aluminum materials provide advantages including lightweight design, excellent thermal conductivity, corrosion resistance, and high strength-to-weight performance.

Product Features

Lightweight and High Strength

Aluminum alloy motor housings provide strong structural support while reducing overall motor weight, improving equipment efficiency and mobility.

Excellent Heat Dissipation

Aluminum materials offer good thermal conductivity, helping transfer heat generated during motor operation and improving motor reliability.

Precision Assembly Capability

Advanced casting and machining processes enable accurate dimensions, bearing seats, mounting structures, and assembly interfaces.

Vibration and Impact Resistance

Motor housings provide stable mechanical support and help protect internal motor components from vibration and external forces.

Complex Design Capability

Manufacturing processes support integrated structures, cooling fins, mounting brackets, cable openings, and customized housing designs.

Applications

Industrial Motors

Motor housings are commonly used for:

• AC motor housings

• Servo motor housings

• Gear motor enclosures

• Industrial drive systems

• Machine motor components

These housings provide reliable protection for industrial motor applications.

Electric Vehicle Systems

Applications include:

• EV drive motor housings

• Traction motor enclosures

• Electric powertrain components

• Motor controller structures

Aluminum motor housings support lightweight and efficient electric vehicle designs.

Automation Equipment

Used for:

• Robot motors

• Servo systems

• Motion control equipment

• Automated machinery components

Motor housings help maintain stable operation in precision automation systems.

Pumps and Mechanical Equipment

Common applications include:

• Pump motor housings

• Fan motor enclosures

• Compressor components

• Mechanical drive systems

These housings provide durable support for rotating equipment.

Manufacturing Process

The motor housing manufacturing process generally includes:

1. Product design analysis

2. Mold design and preparation

3. Aluminum alloy melting and casting

4. Casting cleaning and finishing

5. CNC machining and precision processing

6. Surface treatment

7. Dimensional inspection and performance testing

Each process stage helps achieve accurate dimensions, efficient heat dissipation, and reliable motor housing performance.

Material Options

Common aluminum alloys used for motor housings include:

• ADC12 Aluminum Alloy

• A380 Aluminum Alloy

• A356 Aluminum Alloy

• AlSi9Cu3 Aluminum Alloy

Different aluminum alloys provide various levels of strength, hardness, corrosion resistance, and thermal conductivity.

Custom Motor Housings

Motor Housings can be developed according to specific application requirements, including:

• Customized motor housing structures

• Precision bearing seat designs

• Integrated cooling fin structures

• CNC machining features

• Surface finishing options

These housings are suitable for applications requiring lightweight, durable, and high-performance aluminum motor components.
