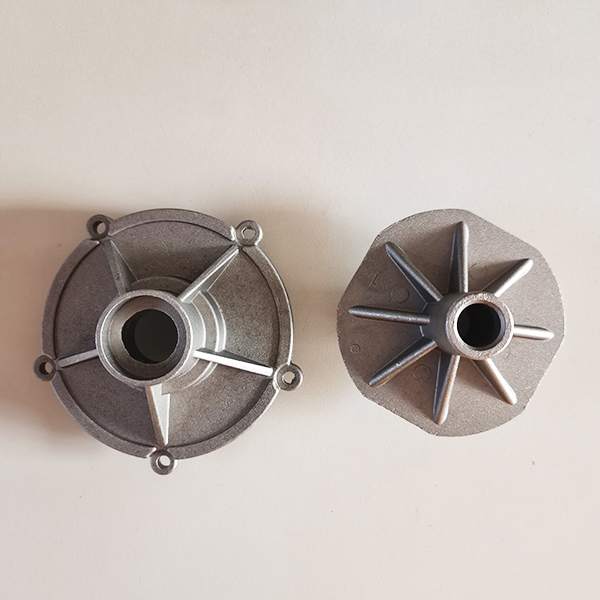

Die Cast Housings

Overview

Die Cast Housings are metal enclosures produced through high-pressure die casting processes using aluminum alloys. These housings are designed to protect internal components, provide structural support, and improve heat dissipation in various equipment and systems.

Die cast housings are widely used in electric motors, automotive components, LED lighting systems, industrial equipment, automation devices, and electronic products. Aluminum materials provide advantages including lightweight construction, corrosion resistance, good thermal conductivity, and excellent mechanical performance.

Product Features

High Dimensional Accuracy

Die casting enables precise control of housing dimensions, wall thickness, mounting structures, and assembly interfaces.

Lightweight Structure

Aluminum alloy housings provide strong structural support while reducing overall equipment weight.

Excellent Protection Performance

Die cast housings protect internal components from mechanical impact, dust, moisture, and environmental conditions.

Efficient Heat Dissipation

Aluminum materials offer good thermal conductivity, helping transfer heat and improve equipment operating stability.

Complex Design Capability

Die casting supports integrated structures, cooling fins, mounting holes, ribs, and complex housing geometries.

Applications

Motor Housings

Die cast housings are commonly used for:

• Electric motor enclosures

• Drive motor covers

• Motor end covers

• Cooling structures

These housings provide protection and thermal management for motor systems.

Automotive Components

Applications include:

• Engine system housings

• Electric vehicle motor housings

• Electronic control housings

• Transmission covers

Aluminum die cast housings support lightweight vehicle designs.

Electronic Equipment

Used for:

• Controller enclosures

• Power supply housings

• Communication equipment cases

• Protective covers

These housings provide structural protection and heat dissipation.

Industrial Equipment

Common applications include:

• Machine housings

• Automation equipment enclosures

• Pump housings

• Mechanical protection covers

Die cast housings support reliable industrial operations.

Manufacturing Process

The die cast housing process generally includes:

1. Product structure analysis

2. Die mold design and preparation

3. Aluminum alloy melting

4. High-pressure die casting

5. Trimming and surface cleaning

6. CNC machining and precision processing

7. Surface treatment and inspection

Each process stage helps achieve accurate dimensions, stable structures, and reliable housing performance.

Material Options

Common aluminum alloys used for die cast housings include:

• ADC12 Aluminum Alloy

• A380 Aluminum Alloy

• AlSi9Cu3 Aluminum Alloy

• A356 Aluminum Alloy

Different aluminum alloys provide various levels of strength, hardness, corrosion resistance, and thermal performance.

Custom Die Cast Housings

Die Cast Housings can be developed according to specific application requirements, including:

• Motor housing designs

• Electronic enclosure structures

• Precision mounting features

• Cooling fin designs

• Surface finishing options

These housings are suitable for applications requiring lightweight, durable, and high-performance aluminum enclosure components.
