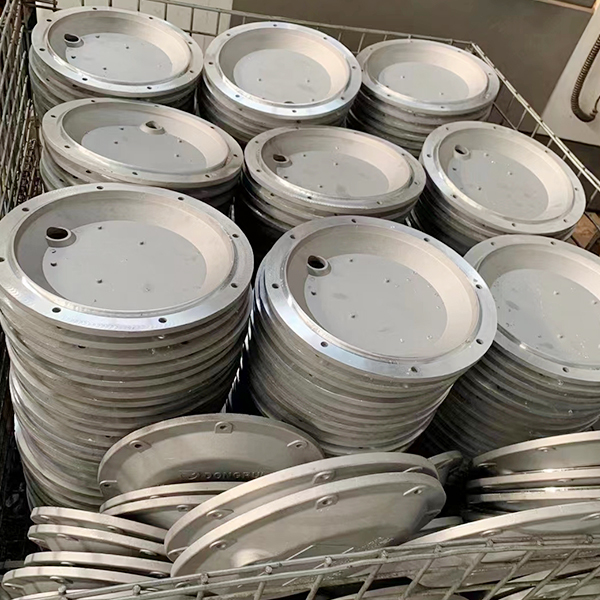

Die Cast Housing

Overview

Die Cast Housings are protective structural components produced through high-pressure die casting technology. They are designed to protect internal mechanical, electrical, and electronic components while providing stable structural support, efficient heat dissipation, and precise assembly performance.

Die cast housings are commonly manufactured from aluminum alloys due to their excellent strength-to-weight ratio, corrosion resistance, thermal conductivity, and casting capability. These housings are widely used in automotive components, industrial equipment, automation systems, electronic devices, communication equipment, LED lighting, and new energy applications.

Product Features

High Precision Manufacturing

The die casting process enables the production of housings with accurate dimensions, complex geometries, thin-wall structures, and integrated mounting features, reducing the need for additional processing.

Lightweight and Strong Structure

Die cast housings provide excellent mechanical strength while maintaining lightweight characteristics, making them suitable for compact and high-performance equipment designs.

Excellent Heat Dissipation

Metal die cast housings, especially aluminum versions, offer efficient thermal conductivity to help dissipate heat generated by motors, electronic components, controllers, and power modules.

Complex Design Capability

Die casting supports integrated structures such as cooling fins, mounting brackets, reinforcing ribs, cable openings, and customized interfaces.

Durable Protection Performance

Die cast housings provide protection against vibration, impact, dust, moisture, and external environmental conditions.

Applications

Automotive Components

Die cast housings are commonly used for:

• Motor controller housings

• Automotive electronic enclosures

• Sensor housings

• Transmission components

• EV system components

These housings support lightweight and reliable automotive applications.

Industrial Equipment

Applications include:

• Machine housings

• Automation equipment enclosures

• Motor housings

• Pump housings

• Industrial control boxes

Die cast housings provide durable protection for industrial systems.

Electronic Equipment

Used for:

• Controller housings

• Power supply enclosures

• Instrument housings

• Communication equipment cases

• Electronic device covers

These housings help improve equipment protection and thermal management.

Electrical and New Energy Systems

Common applications include:

• Battery system housings

• Charging equipment enclosures

• Inverter housings

• Power module cases

• Energy storage components

Die cast housings support reliable operation of modern electrical systems.

Manufacturing Process

The die cast housing manufacturing process generally includes:

1. Product design analysis

2. Die mold design and manufacturing

3. Metal alloy melting

4. High-pressure die casting

5. Trimming and surface cleaning

6. CNC machining and precision processing

7. Surface treatment

8. Dimensional inspection and quality verification

Each manufacturing stage helps achieve accurate dimensions, stable structures, and consistent product performance.

Material Options

Common materials used for die cast housings include:

• ADC12 Aluminum Alloy

• A380 Aluminum Alloy

• AlSi9Cu3 Aluminum Alloy

• A356 Aluminum Alloy

• Zinc Alloy Zamak Materials

Different materials provide different levels of strength, hardness, corrosion resistance, thermal conductivity, and casting performance.

Custom Die Cast Housings

Die Cast Housings can be customized according to specific application requirements, including:

• Custom enclosure structures

• Precision die casting designs

• CNC machining features

• Heat dissipation structures

• Waterproof and sealing solutions

• Surface finishing options

These housings are suitable for applications requiring high precision, lightweight design, durable protection, and reliable performance across automotive, industrial, electronic, and energy industries.
