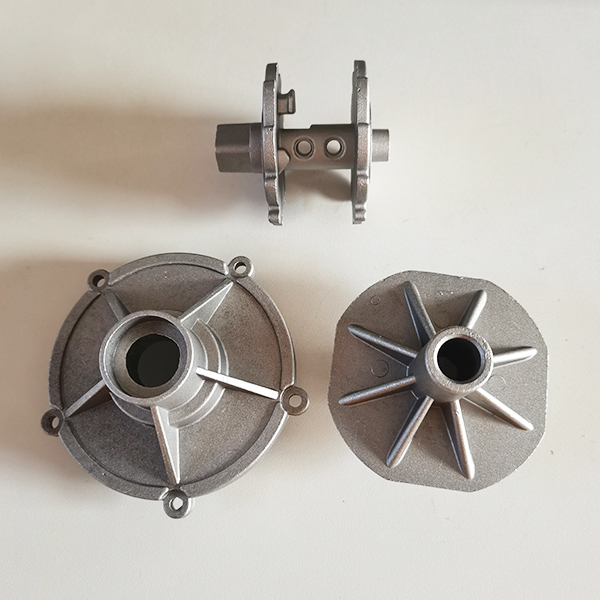

Die Cast Enclosure

Overview

Die Cast Enclosures are aluminum alloy housings manufactured through high-pressure die casting processes. These enclosures are designed to protect sensitive internal components while providing structural support, thermal management, and reliable performance in various operating environments.

Die cast enclosures are widely used in electronic devices, electrical equipment, automation systems, communication equipment, industrial instruments, and control systems. Aluminum materials provide advantages including lightweight construction, corrosion resistance, good thermal conductivity, and excellent mechanical stability.

Product Features

Strong Protective Structure

Die casting provides high structural strength, allowing enclosures to protect internal components from mechanical impact and external conditions.

Excellent Heat Dissipation

Aluminum alloy materials provide good thermal conductivity, helping release heat generated by electronic and electrical components.

High Dimensional Accuracy

The die casting process enables precise dimensions, consistent wall thickness, and accurate mounting positions for component assembly.

Lightweight Design

Aluminum enclosures provide strong protection while reducing overall equipment weight.

Complex Structural Capability

Die cast enclosures support integrated designs with mounting holes, ribs, covers, cooling structures, and customized shapes.

Applications

Electronic Equipment

Die cast enclosures are commonly used for:

• Electronic device housings

• Controller cases

• Instrument enclosures

• Power supply covers

• Communication equipment housings

These enclosures provide protection and thermal management for electronic systems.

Electrical Systems

Applications include:

• Junction boxes

• Control cabinets

• Electrical protection housings

• Connection enclosures

• Power equipment cases

Aluminum die cast enclosures support safe and stable electrical system operation.

Industrial Automation

Used for:

• Automation controllers

• Sensor housings

• Machine control units

• Industrial monitoring equipment

• Equipment protection covers

These enclosures provide durable protection in industrial environments.

Communication Equipment

Common applications include:

• Communication device housings

• Signal equipment cases

• Network equipment enclosures

• Outdoor electronic housings

Die cast aluminum structures support reliable equipment operation.

Manufacturing Process

The die cast enclosure process generally includes:

1. Product structure analysis

2. Die mold design and preparation

3. Aluminum alloy melting

4. High-pressure die casting

5. Trimming and surface cleaning

6. CNC machining and precision processing

7. Surface treatment and inspection

Each process stage helps achieve accurate dimensions, stable structures, and reliable enclosure performance.

Material Options

Common aluminum alloys used for die cast enclosures include:

• ADC12 Aluminum Alloy

• A380 Aluminum Alloy

• AlSi9Cu3 Aluminum Alloy

• A356 Aluminum Alloy

Different aluminum alloys provide various levels of strength, hardness, corrosion resistance, and thermal conductivity.

Custom Die Cast Enclosures

Die Cast Enclosures can be developed according to specific application requirements, including:

• Customized enclosure structures

• Precision mounting features

• Integrated cooling designs

• Surface finishing options

• Lightweight aluminum housing solutions

These enclosures are suitable for applications requiring durable, accurate, and high-performance aluminum protective housings.
